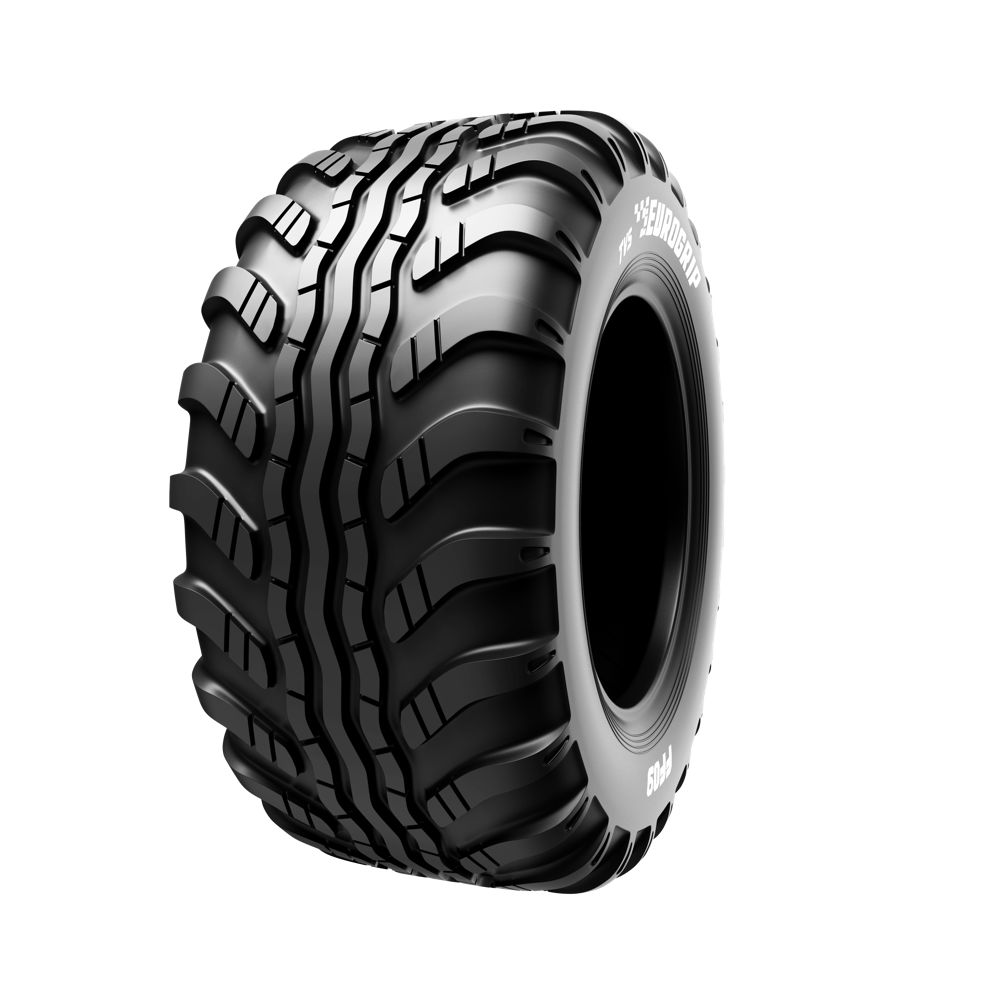

FF 09
IMPLEMENT-Z RIB
FL 18 is a high flotation implement tyre suitable for both drive and free wheel application. With rounded shoulders the tyre causes minimal possible damage to sensitive surfaces. It is built for high load carrying capacity and minimal possible soil compaction. Its suited for use in agricultural implements such as balers, trailers, planters, seeders etc.
Round Baler
Square Baler
Seeder
Trailer
| TYRE SIZE | 385/65-22.5 | ECE | E4-106R-001247 |
| PERMITTED RIMS (inch) | AG 11.75 | SECTION WIDTH (mm) | 424 |
| OVERALL DIAMETER (mm) | 1041 | STATIC LOAD RADIUS (mm) | 462 |
| ROLLING CIRCUMFERENCE (mm) | 3018 | LOAD INDEX SPEED SYMBOL | 154A8/141A8 |
| TYPE | TL | FABRIC | Textile |
| OPERATION TYPE | SPEED (kmph) | TYRE LOAD (kg) AT INFLATION PRESSURE | |
| 4 (bar) | 8.3 (bar) |
||
| - | 10 | 4740 | 13000 |
| - | 25 | 4030 | 10410 |
| - | 40 | 3385 | 5900 |
| - | 50 | 3075 | 3075 |
| OPERATION TYPE | SPEED (kmph) | TYRE LOAD (kg) AT INFLATION PRESSURE |
| 4 (bar) | ||
| - | 10 | 6740 |
| - | 25 | 5730 |
| - | 40 | 4815 |
| - | 50 | 4375 |
