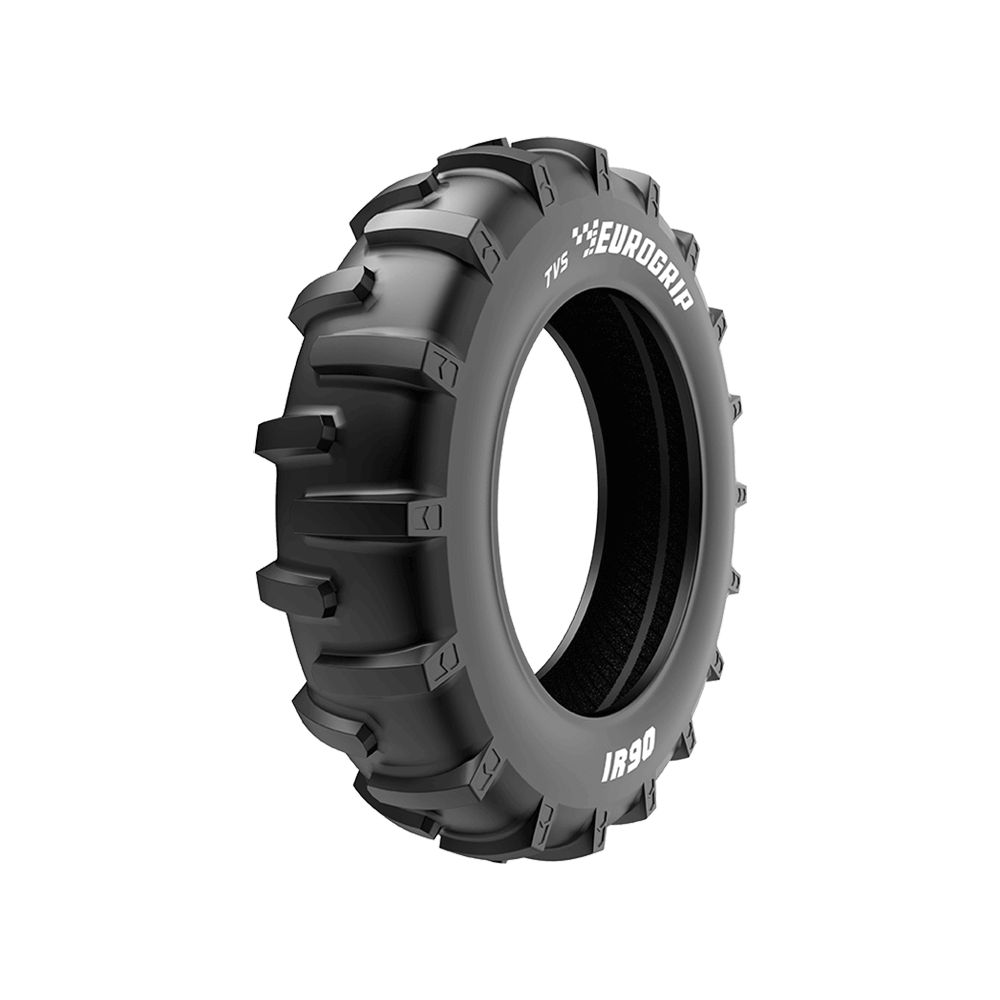

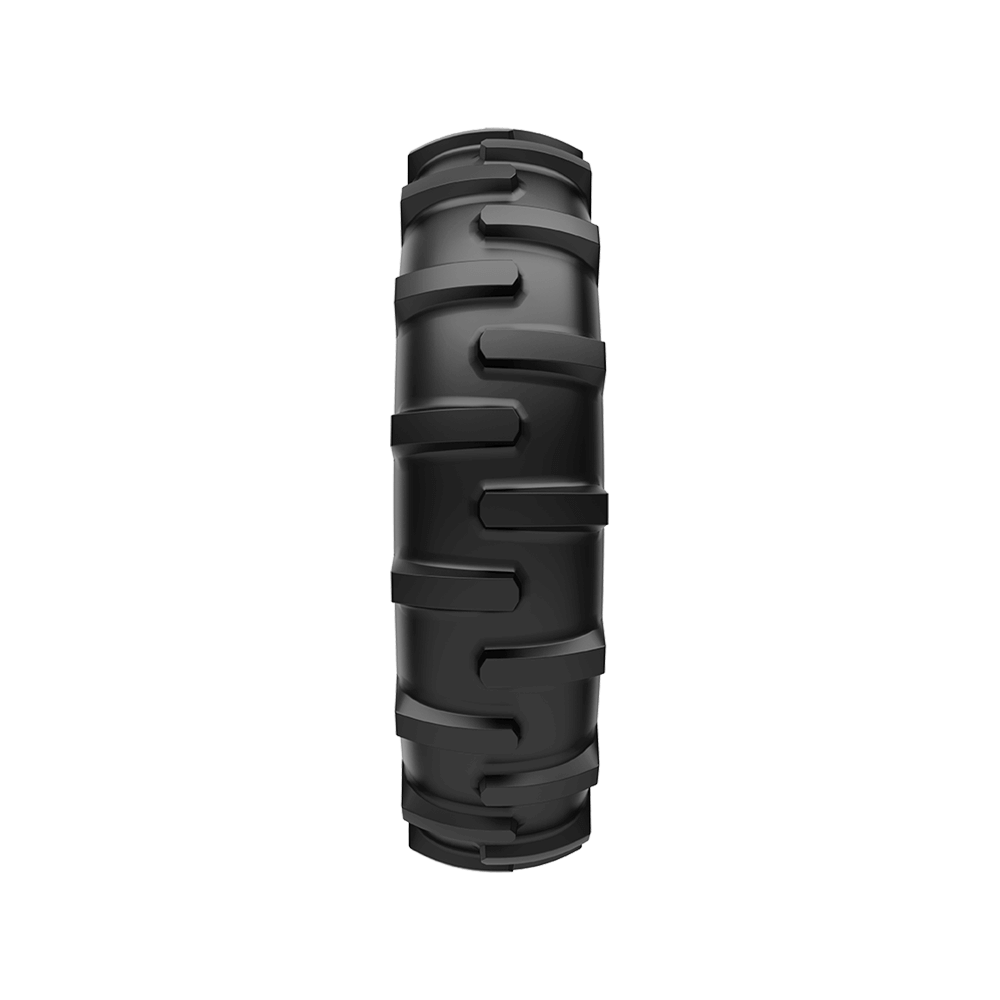

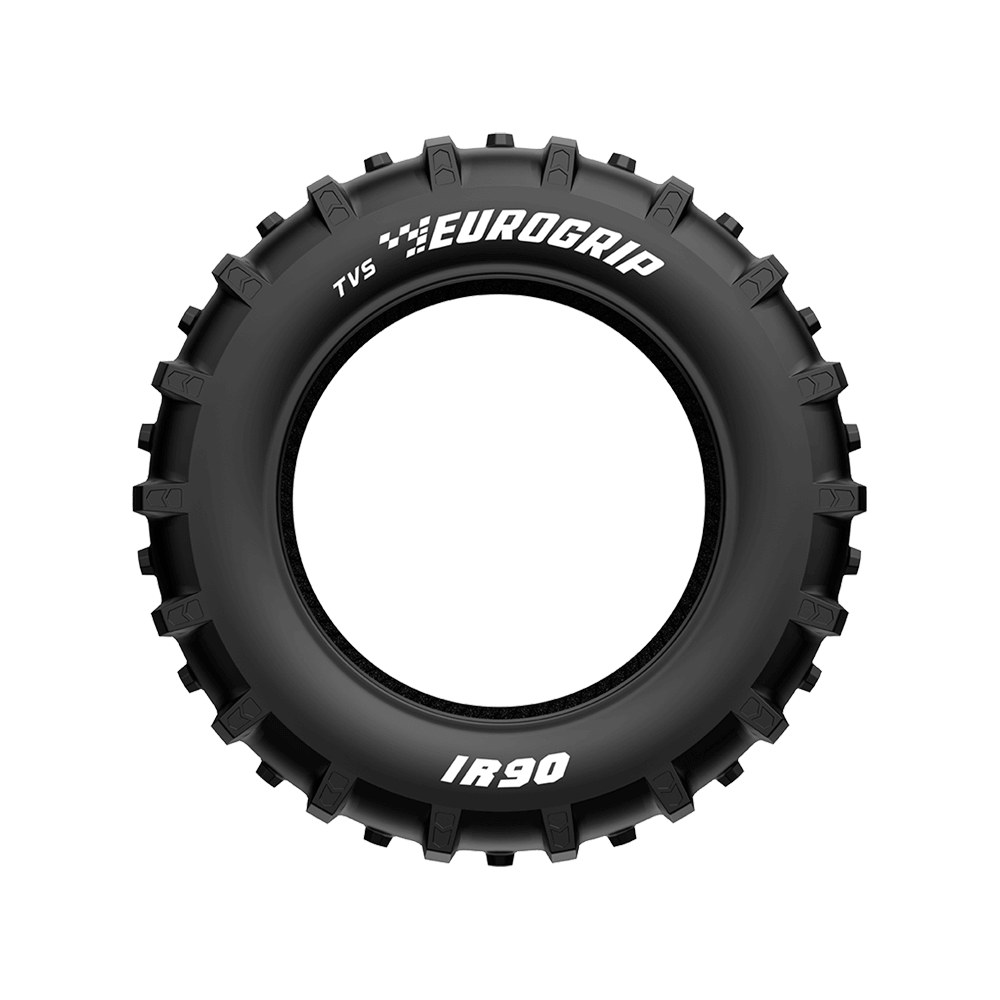

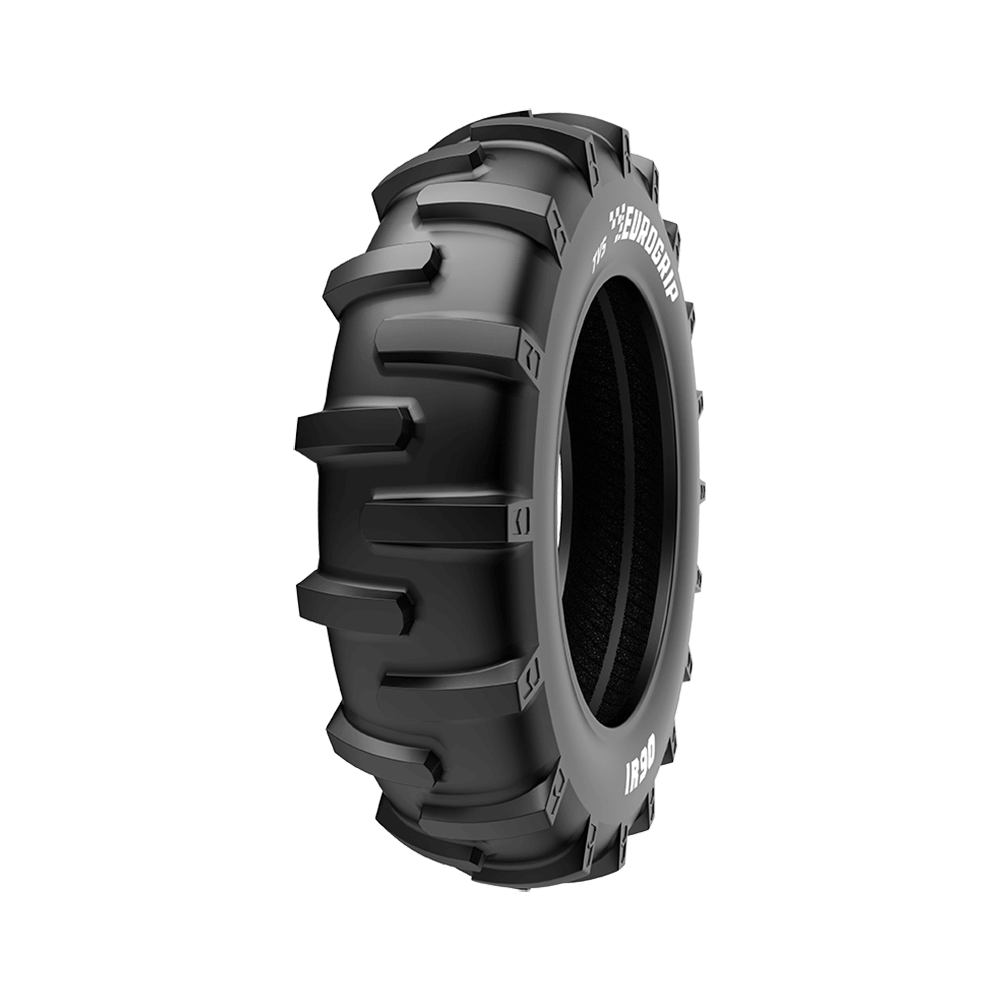

IR 90
IR90 is a Non-Directional Tire which is designed specifically for pivot irrigation systems. The horizontal lugs with optimum spacing between lugs offer highest traction in wet & moist conditions during the irrigation use. Robust construction with ozone resistance compounds protects it from Ozone deterioration.
N/A
N/A
Suitable for
Pivot Irrigator
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 11.2-38 | W10 | - | 288 | 1458 | 674 | 4307 | TL | 6 | 117A6 | 113A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||||||||||||||
| 11.2-38 | W10 | - | 288 | 1458 | 674 | 4307 | TL | 6 | 117A6 | 113A8 | Textile | + | ||||||||||||
|
Load Capacity Per Tyre
|
|||||||||||||||||||||||
